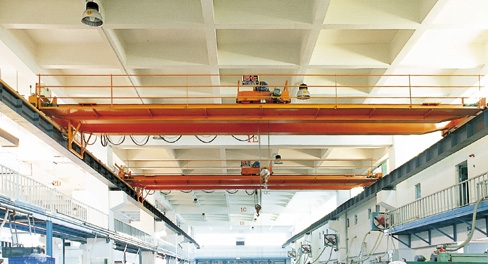

Introduction： LH type electric hoist double beam crane is traveling on fixed support, the frame adopts box-type welding mechanism, and it used together with CD1 or MD1 model wire rope electric hoist as a complete set, It is an mid-duty class crane.This type crane is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipment in the combustible, explosive to corrosives environment.
Introduction to electric hoist double-beam crane: LH electric hoist double-beam crane (referred to as hoist double and hoist double) series uses fixed wire rope hoist as lifting mechanism (main hook and auxiliary hook). It is installed on the centralized driven double-track trolley and used together with the double-beam bridge.
Technical parameters of electric hoist double-beam crane: lifting capacity: 3 tons, 5 tons, 8 tons, 10 tons, 15 tons, 16 tons, 20 tons, 25 tons, 32 tons, 50 tons; Lifting height: 6m-30m span: 10.5m-35.5m Working level: A3 - A5
Scope of application of electric hoist double-beam crane: LH-type electric hoist double-beam crane has the advantages of compact size, low building clearance, light dead weight and small wheel pressure. It is applicable to the transfer, assembly, maintenance and loading and unloading operations of machining workshop, metallurgical plant auxiliary workshop, warehouse, stock yard, hydropower station, etc; It can also replace the ordinary double-beam bridge crane and be used in the production workshops of light textile industry and food industry. Its working type is light and medium, and the working environment temperature is - 25-40 ℃. It is prohibited to use in flammable, explosive and corrosive media environment.
Operation mode of electric hoist double-beam crane: LH-type electric hoist double-beam crane This product has three operation modes: wired ground operation, cab operation and wireless remote control, which can be operated in single or multiple ways. There are two types of crane control room: open type and closed type. It can be divided into left or right installation according to the actual situation. There are three entry directions: side, end and top to meet users' choices under different needs.
